Slag Pots is widely used in steel and casting industry. It is a kind of container that takes up steel slag. Generally, the slag body is made of cast steel, the trunnion and turning mechanism are made of forged steel. Supply a wide range of slag pots, with good quality and fast delivery at best price. The materials used comply with ASTM, DIN, BS, JIS, NF etc. standard.
Every slag pot is designed and engineered to meet specific and critical custom specifications. Designed and cast in high grade steel that exhibits high tensile strength and fracture toughness to resist impact damage.
Segments are indispensable in the process of continuous casting. CLIK are one of the best suppliers of segments and relevant spare parts for billet/round/bloom/slab continuous casting machines.
The units included the vertical bending segment, bow segment, straightening segment, horizontal segment, bow support frame, horizontal support frame, segment up and down the frame, roller holder beam etc.
From the ladle, the hot metal is transferred via a refractory shroud (pipe) to a holding bath called tundish. The tundish allows a reservoir of metal to feed the casting machine while ladles are switched, thus acting as a buffer of hot metal, as well as smoothing out flow, regulating metal feed to the molds and cleaning the metal.
We are one of the few suppliers capable of providing solution of tundish with excellent performances as commented by Tata Steel European. Chemical and mechanical properties being strictly tested with traceability, forged high-strength steel applies to trunnion.
Supply ladles & transfer cars with functions of weighing,tilting,revolving,lifting and cross moving, etc.Ladles include torpedo ladle, pig iron ladle, steel ladle, slag pot ,etc.
The metallurgical vehicle is a kind of vessel for transport and disposal of molten steel, molten iron, slag, scrap steel, etc. for steel-making and metallurgical enterprises. Mainly including 180t-450t torpedo type hot iron mixing car,200t-380t tubular type hot iron mixing car,60t-450t ladle car, slag pot car, hot metal weighing car, hot metal tilting car, scrap transfer car, refining steel ladle car, etc.
Dummy bar also called the starter bar, is used to track and lead the cooled and solidified strand and pull it out by the withdrawal and straightening machine. Supply rigidity Billet Dummy Bar and flexible Billet Dummy Bar as customers’ requirement with the features of long service life and stable performance.
Supply all kinds of cranes, like general-purpose cranes, metallurgical cranes and port cranes.
Metallurgical cranes are a kind of special crane equipment used for the metallurgic plant. Mainly consist of:
Ladle Crane: 50t, 75t, 80t, 100t, 125t, 130t, 140t, 150t, 160t, 170t, 180t, 190t, 200t, 225t, 240t, 250t, 260t, 280t, 300t, 450t.
Charging Crane: 20+20t~100+110t, 180/50t, 240/80t, 260/80t, 300/80t.
Crane with Lifting Beam: 5t+5t~60t+60t.
Tongs Crane: 10t+10t~50t+50t

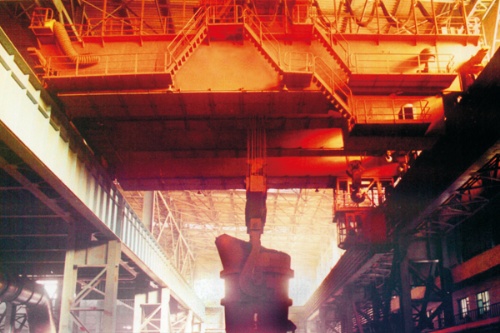

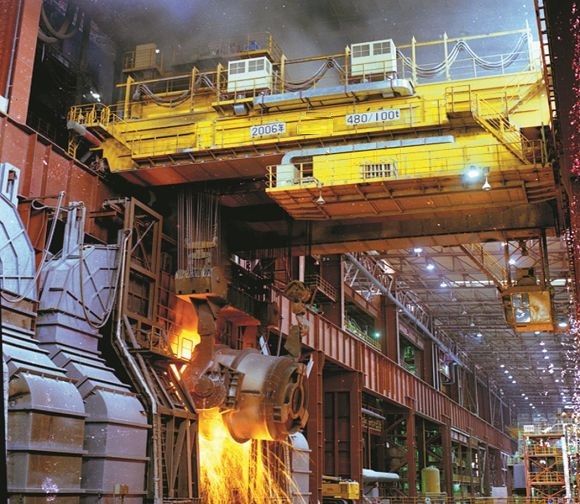

Ladle Crane

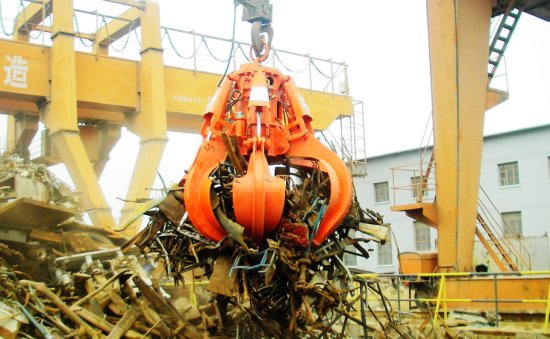

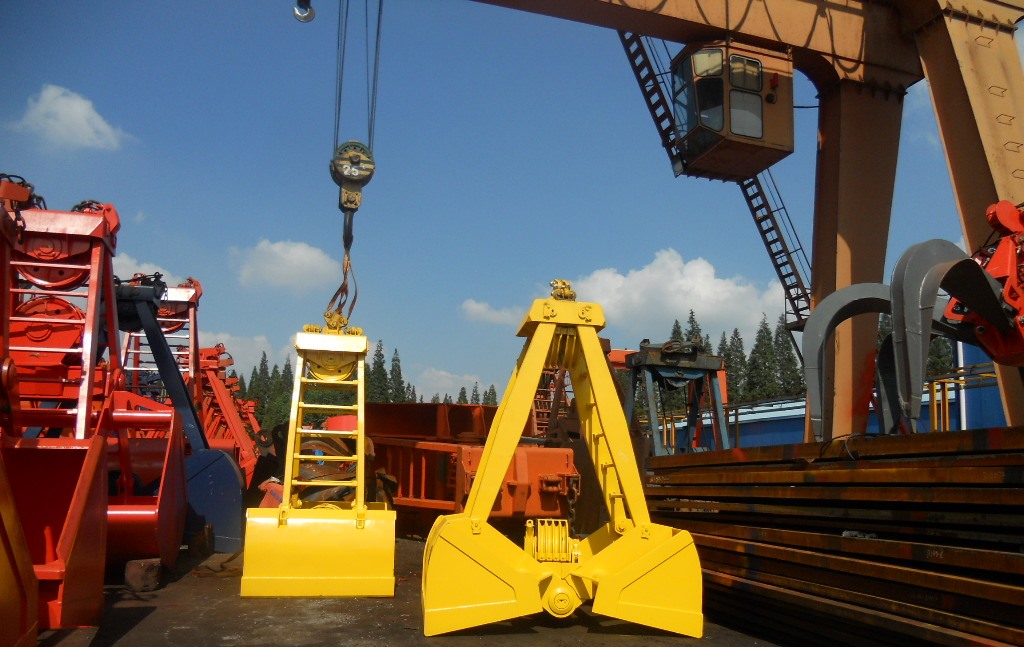

Supply variety accessories for cranes, like grabs, are designed to provide maximum durability and low maintenance.
Pulleys with high wear resistance and long service life used for crane equipment, port equipment etc. All items are inspected and tested (UT&MT) thoroughly during every working process and have traceability.
Labyrinth seals,also called labyrinth rings,are a type of mechanical seal that provides a tortuous path to help prevent leakage.Labyrinth seals for mill roll can prevent the high-pressure water reaching the spindle oil distribution ring seal oil cavity, reduce oil leakage, make recycled oil quality remained stable, so as to prolong the service life of the mill rolls' shaft.
Shafts and couplings are wildly used in metal machinery, rolling mills, mill machines, cranes for metallurgical Industry. High-quality shafts and couplings customized according to drawing or demands.

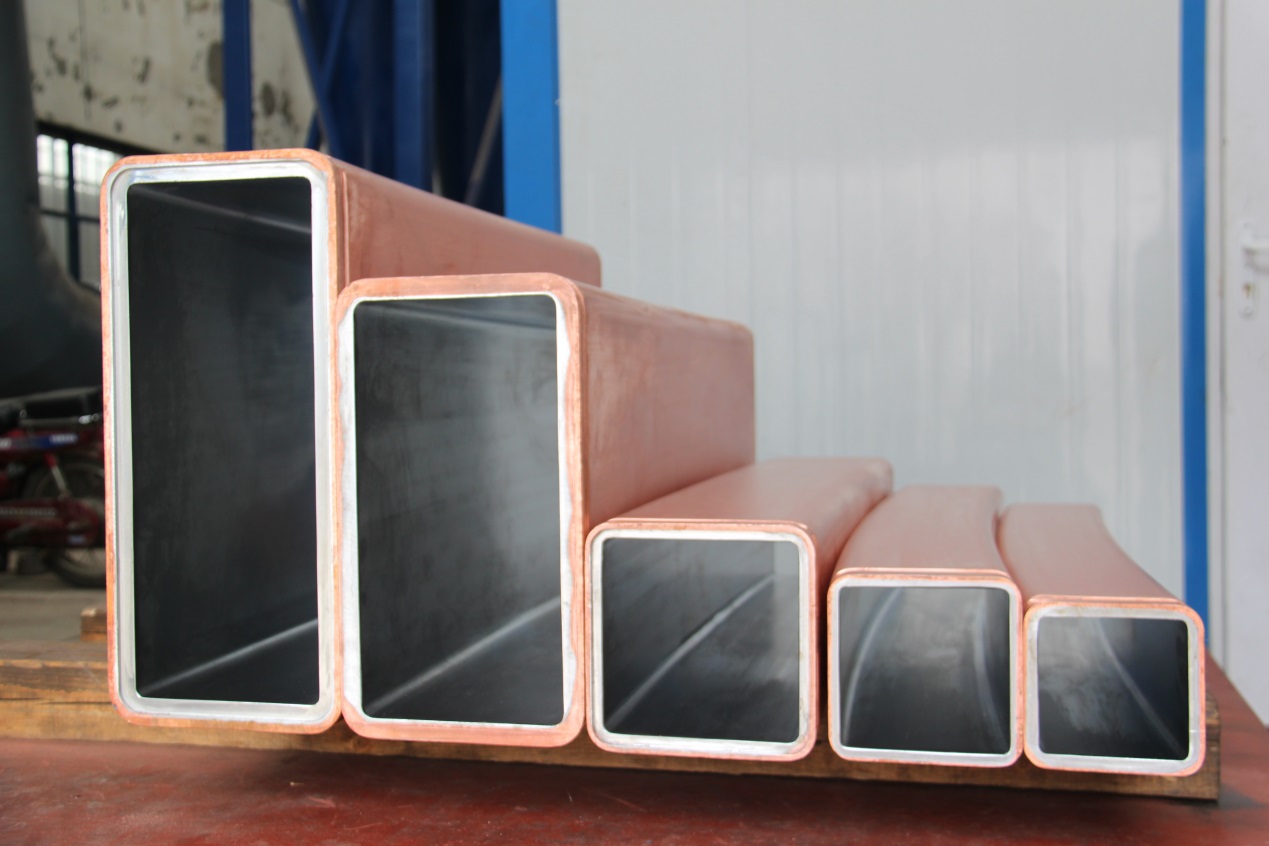

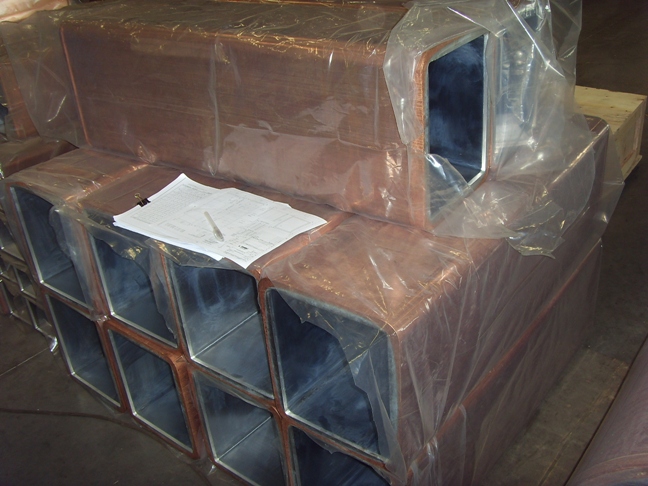

Production specifications: (covering all sizes)
§ Square: from 60×60mm to 700×700mm
§ Round: from ø80mm to ø 900mm
§ Bloom: from 135×430mm to 365×600mm
Taper designing: Providing different productions, including single taper, double tapers, parabolic taper and polygon taper.
Materials: DHP, CuAg, CuCrZr
Coating: Cr, NiCo+Cr

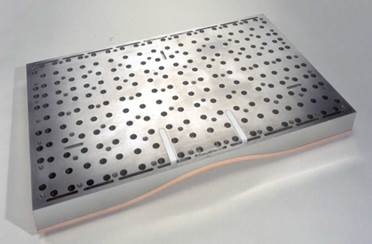

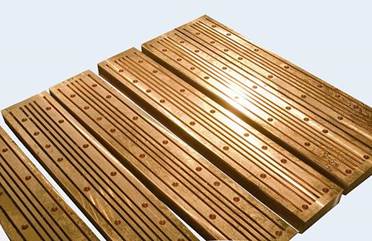

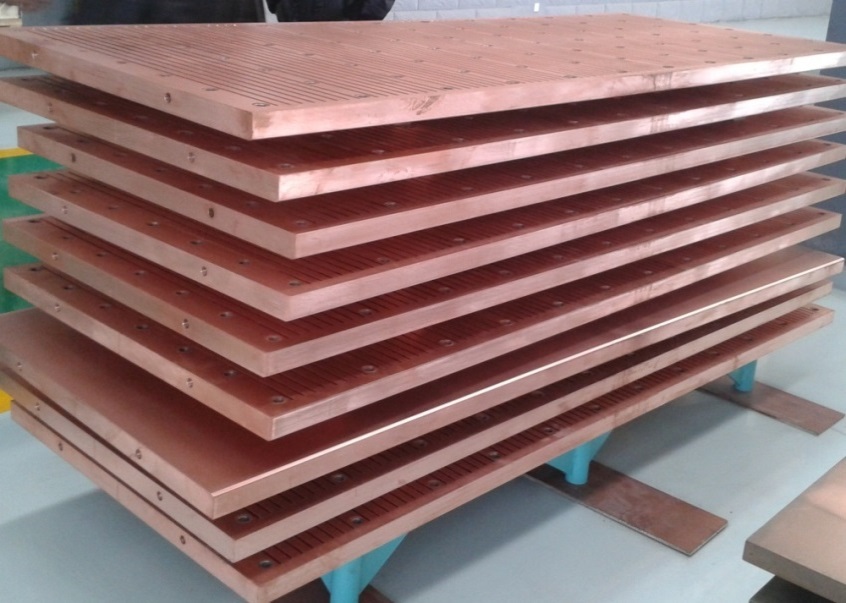

Copper Mould plate
Conventional mould plates, thin slabs, beam blank copper mould assembly, CSP and build-up moulds
Dim: from 120×850mm to 3600×1000mm
Thickness: 40mm-55mm
Material: CuAg, CuCrZr
Coating: NiCo , NiCo+Cr , Ceramic coating
The outer water jacket and guidance water jacket are designed as one union , guidance water jacket apply narrow water gap which will increase cast speed and quality to meet the requirements of high-efficiency casting by cooling alongside the whole copper mould, distributing water smoothly, flowing with high speed, exchanging heat well.
The precision of mould assemblies is guaranteed as the forged stainless water jackets are produced by extrusion while assembled water jackets are machined by high precision CNC machines.

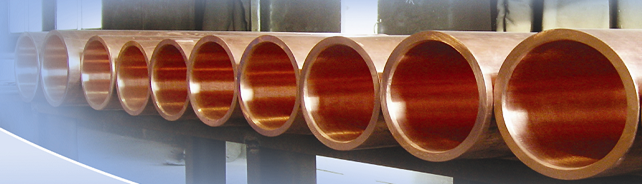

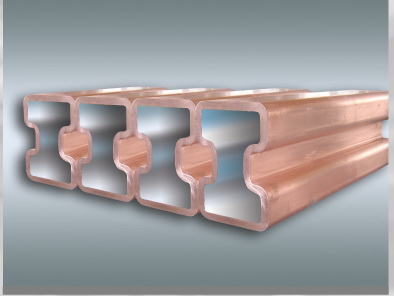

Moulds play very important role during the continuous casting process, its function is to solidify the liquid steel pouring through the submerged entry nozzle, guarantee required billet/bloom with enough thicken shell to be obtained. Moulds are very important for continuous casting efficiency increasing and the cast quality improvement. We supply variety round, square, rectangular and beam blank mould assemblies with excellent performance.
