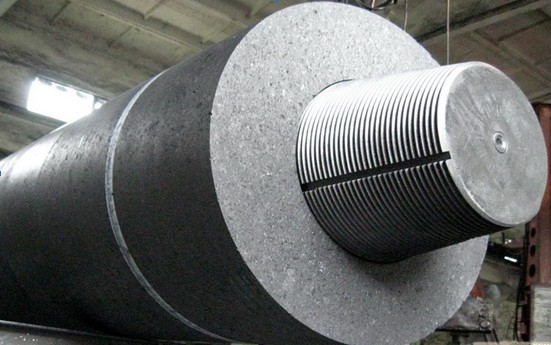

Graphite electrodes are mainly used in EAF and LF for steel making. Supply various NP, HP, UHP grade Graphite Electrodes(Ø75mm — Ø700mm) with nipples.
Our electrodes have the properties of superior electric conductivity and chemical stability, low ash, thermal conductivity, high mechanical strength, antioxidation and corrosion resistance in high temperature.
Standard sizes of electrode
|
Specifications(inch) |
Allowable Diameter(mm) |
Allowable Length(mm) |
||||
|
Nominal Diameter |
Max. |
Min. |
Nominal Length |
Max. |
Min. |
|
|
12 |
300 |
307 |
302 |
1800 |
1875 |
1700 |
|
14 |
350 |
357 |
352 |
1600 |
1700 |
1500 |
|
1800 |
1875 |
1700 |
||||
|
16 |
400 |
409 |
403 |
1600 |
1500 |
1500 |
|
1800 |
1875 |
1700 |
||||
|
2100 |
2175 |
1975 |
||||
|
18 |
450 |
460 |
454 |
1800 |
1875 |
1700 |
|
2100 |
2175 |
1975 |
||||
|
2400 |
2475 |
2275 |
||||
|
20 |
500 |
511 |
505 |
1800 |
1875 |
1700 |
|
2100 |
2175 |
1975 |
||||
|
2400 |
2475 |
2275 |
||||
|
22 |
550 |
562 |
556 |
2100 |
2175 |
1975 |
|
2400 |
2475 |
2275 |
||||
|
24 |
600 |
613 |
607 |
2100 |
2175 |
1975 |
|
2400 |
2475 |
2275 |
||||
|
2800 |
2850 |
2550 |
||||
|
26 |
650 |
663 |
657 |
2400 |
2475 |
2275 |
|
28 |
700 |
714 |
708 |
2400 |
2475 |
2275 |
|
2800 |
2850 |
2550 |
||||
Nipples: 3TPI or 4TPI

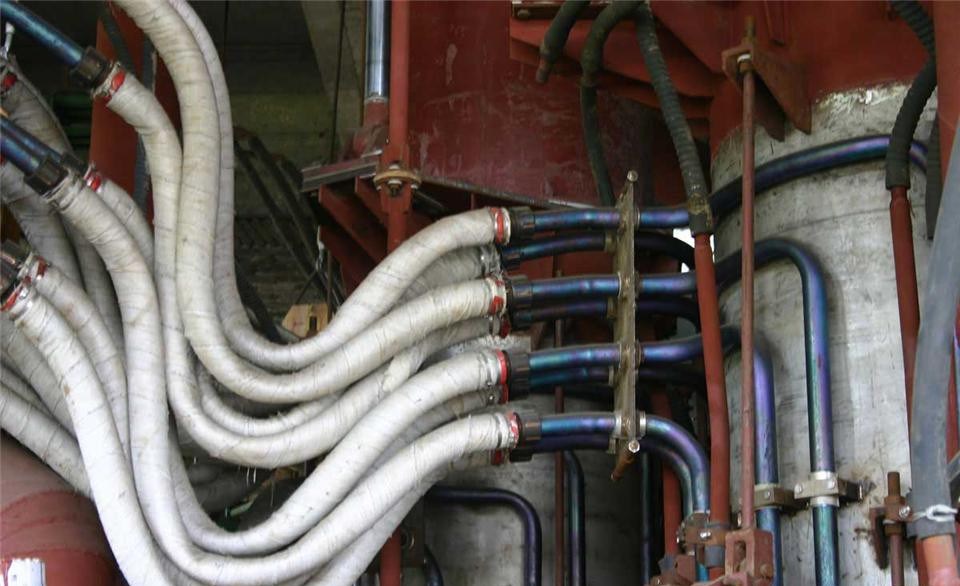

Water cooled cables being the ideal solution for high current in limited space with need for flexibility, which is continuously water cooled cable and hence named so. For large section water cooled cables are widely used to steelmaking arc furnace, ladle refining furnace and reduction arc furnace as well as other melting furnaces. We offer a wide range of water cooled cables. The rigid construction offers excellent durability even in the most severe service conditions.

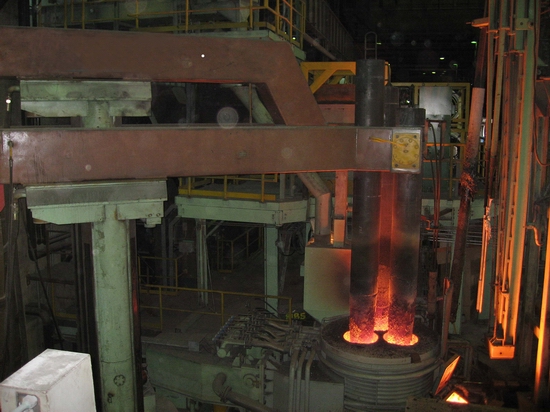

New type electric conductive arm serves the function of conduction and electrode grasp with copper-steel complex structure and circular cooling waterway, which forms science and reasonable collocation in electric & structure aspects.
