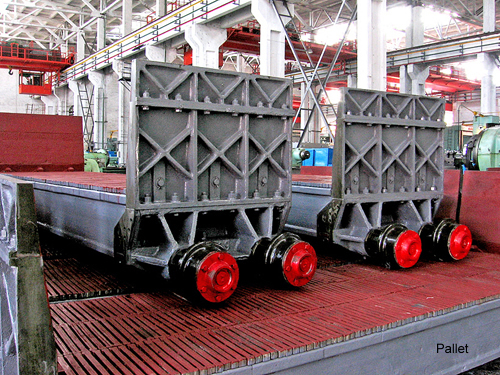

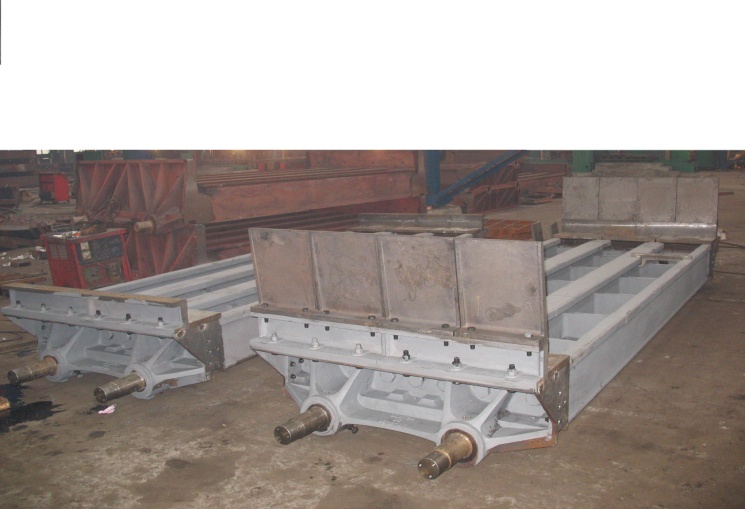

Pallets are of important parts of sintering machines. The pallets are consists of pallet body, roller cover, wheel, axle, side wall plates, side sealing plates of ignition furnace, grate bars, bolt insulating pieces, wearing plates etc.

The pallets, as serial products for updated sintering machines, could meet requirements of new made sintering machines, as well as current sintering machines with areas of 18m², 24m², 27m², 33m²,36m², 39m²,50m², 75m², 90m²,105m², 110m²,130m², 132m²,180m², 265m², 300m², 450m².etc. Our pallet cars have reliable performance, advanced design, low energy consumption which is welcomed by end users.

Main technical parameters:

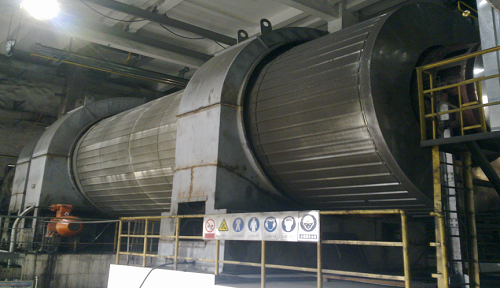

Drum mixer is one of the main equipment for the sintering plant. It can make the material into suitable pellets. There are primary drum mixer, secondary drum mixer, and tertiary drum mixer according to their structural characteristics.

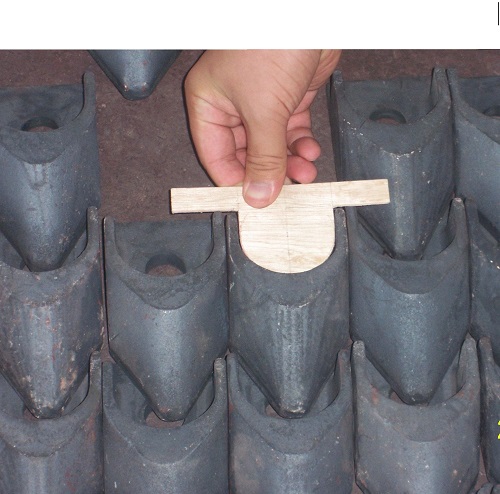

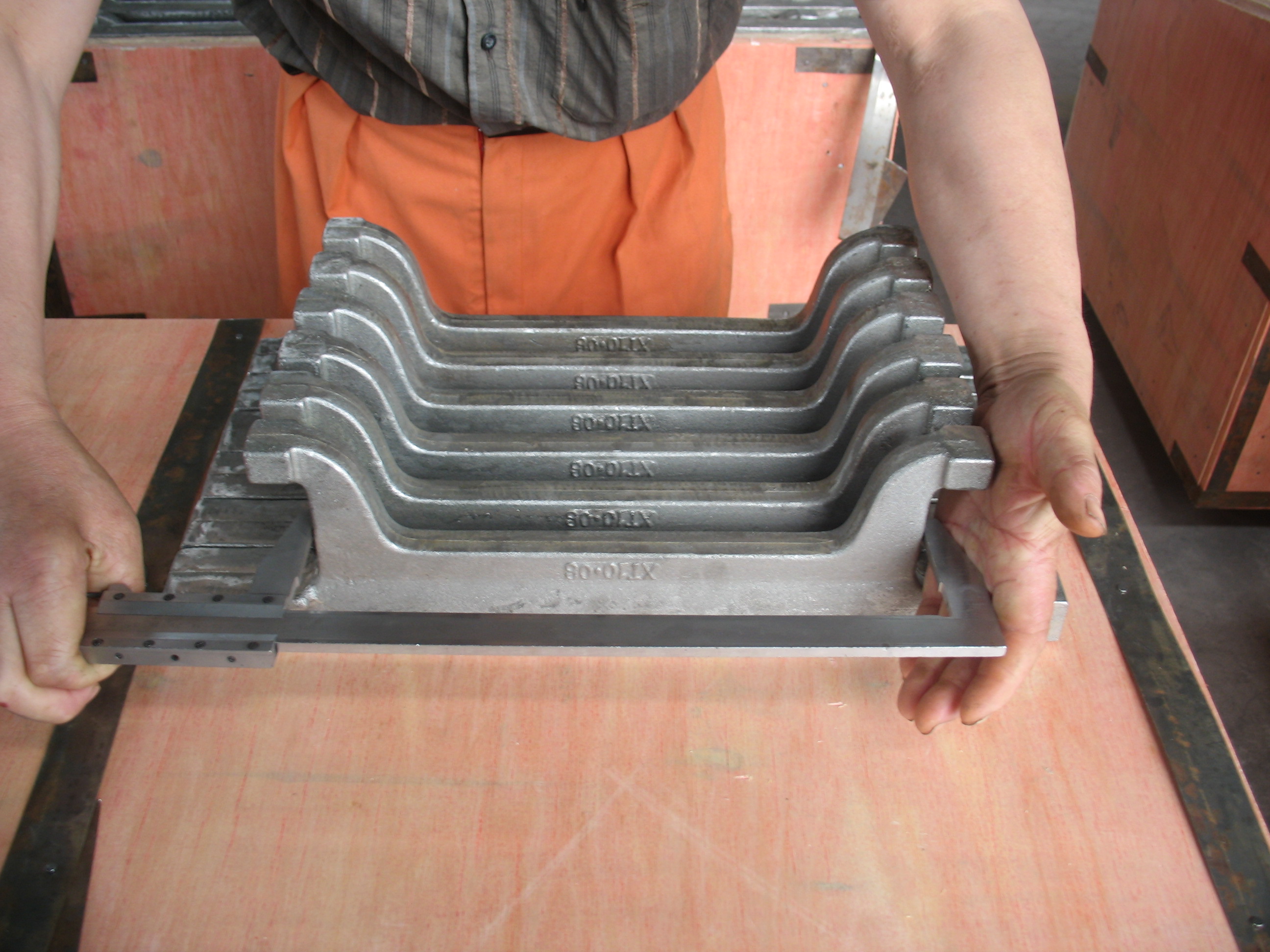

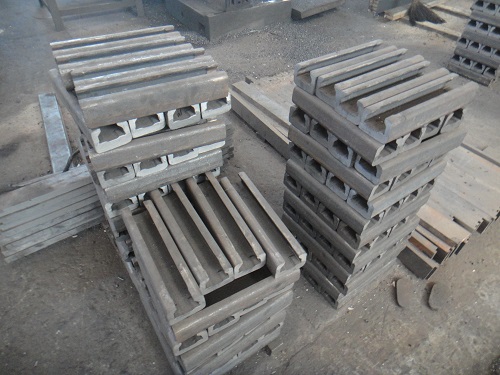

Grate bar is the main part of sintering machine. The grate bars are intended for holding and transporting the ore mill by forming a trough space with the railing plates on the pallets.

Variety grate bars with good heat resistant abrasion resistant and corrosion resistant capability. For Cr25 high Cr grate bars are inoculated with multiple active elements so its toughness increased largely, ak value achieved 8~12J/cm2, inoxidizability also increased 50~80%, shell mould casting, good surface roughness, accurate dimension.

Grate Bars from materials:

1. High Manganese Casting: Mn13, Mn18, Mn22, Mn13Cr2, Mn18Cr2, Mn22Cr2, Mn13CrMo, Mn13CrMoNi.
2. 2. High Chrome Steel: Cr13, Cr15, Cr18, Cr20, Cr25, Cr27, Cr15Mo1, Cr18Mo1, Cr25Mo0.5Ni0.5.
3.  Any other material as customer's drawing and requirements.

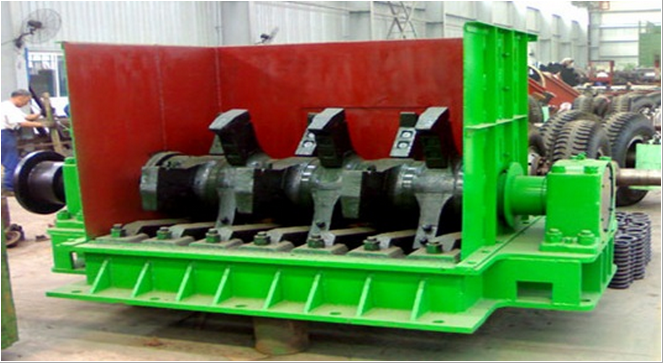

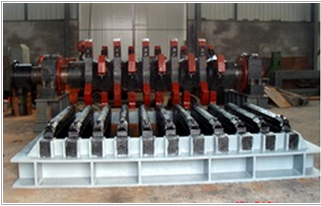

Sinter crusher is used for crushing large sinter into small size that conforms to process requirements, the work temperature is around 900° C , with inner water cooling system. The special cooling gear can make stable performance, diminishing the cost of using, with long working life and low energy consumption.
